JINELEC 200
Dielectric Fluid Series

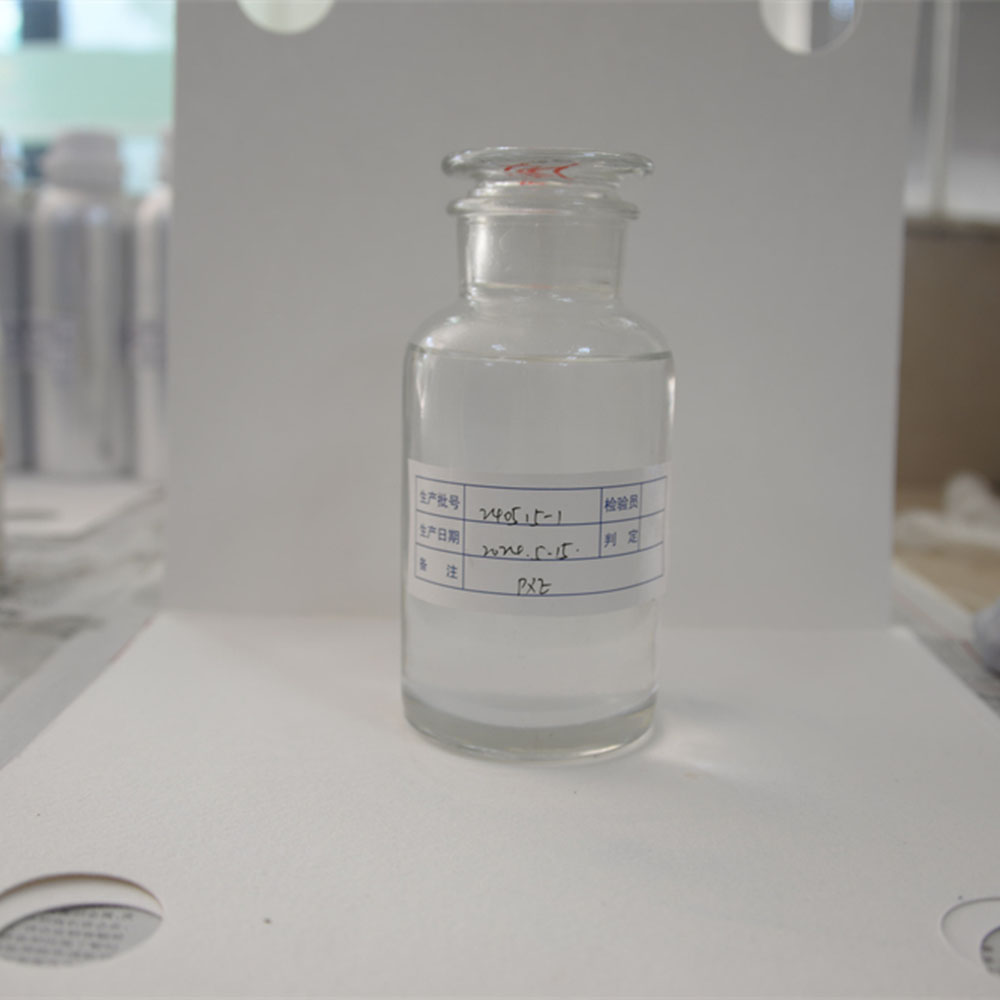

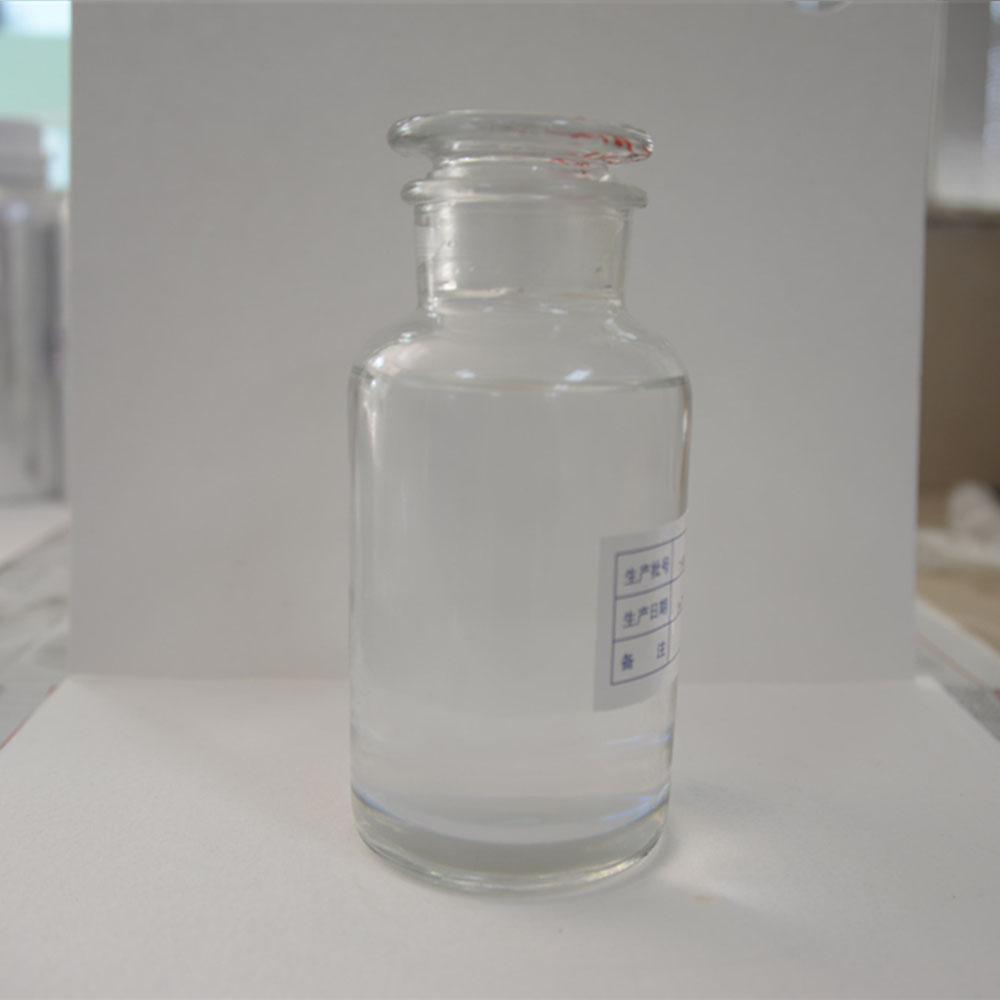

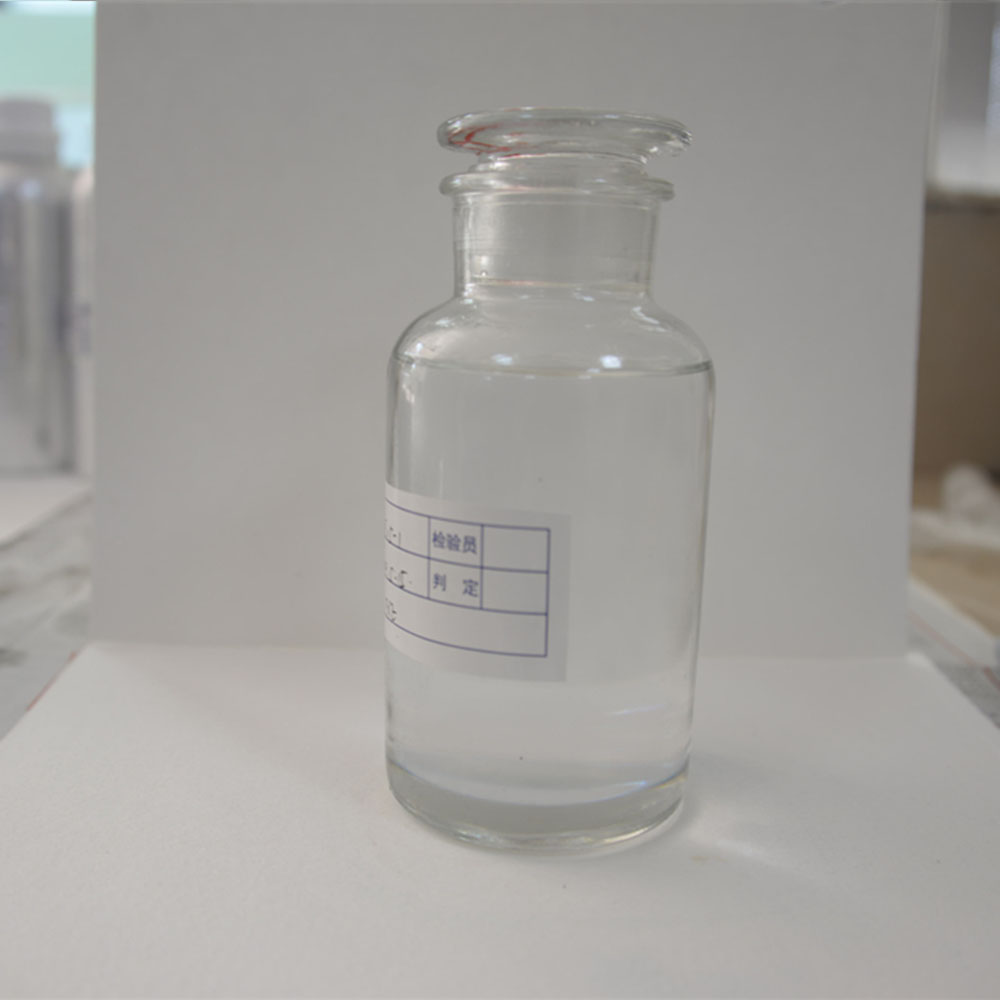

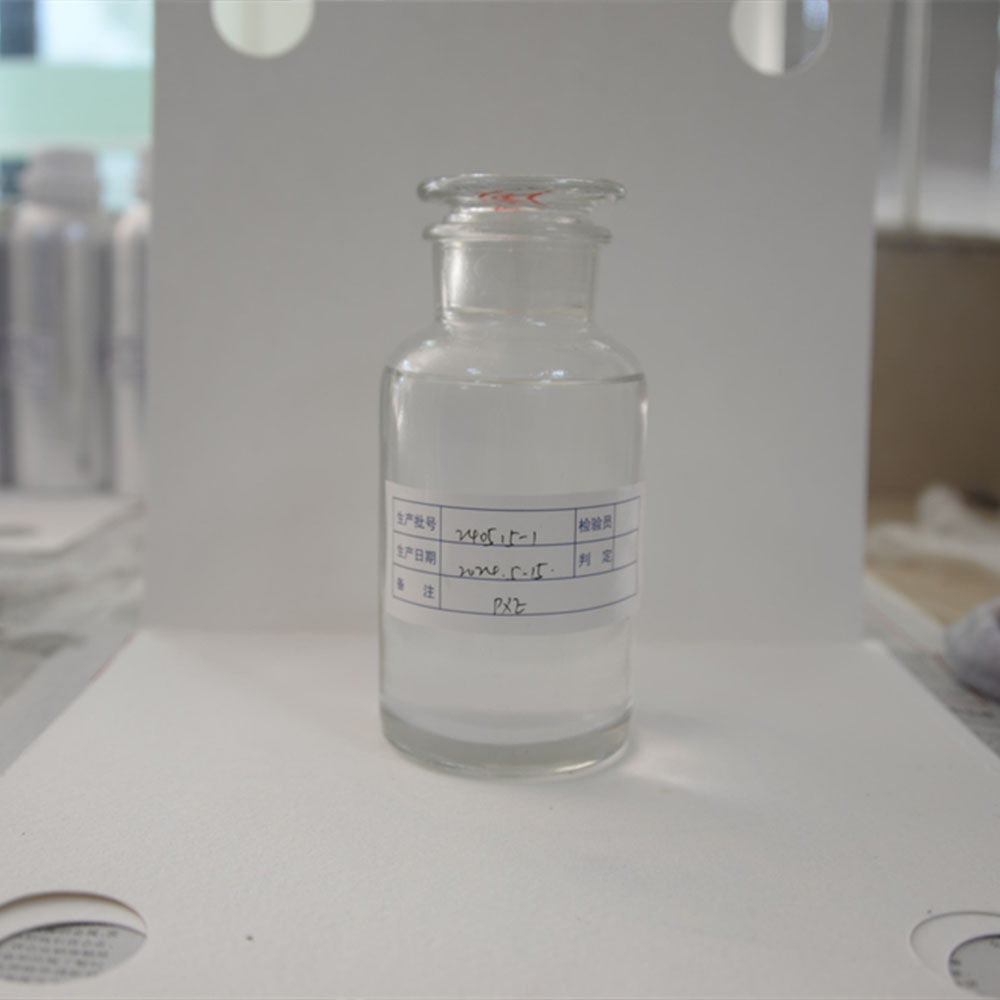

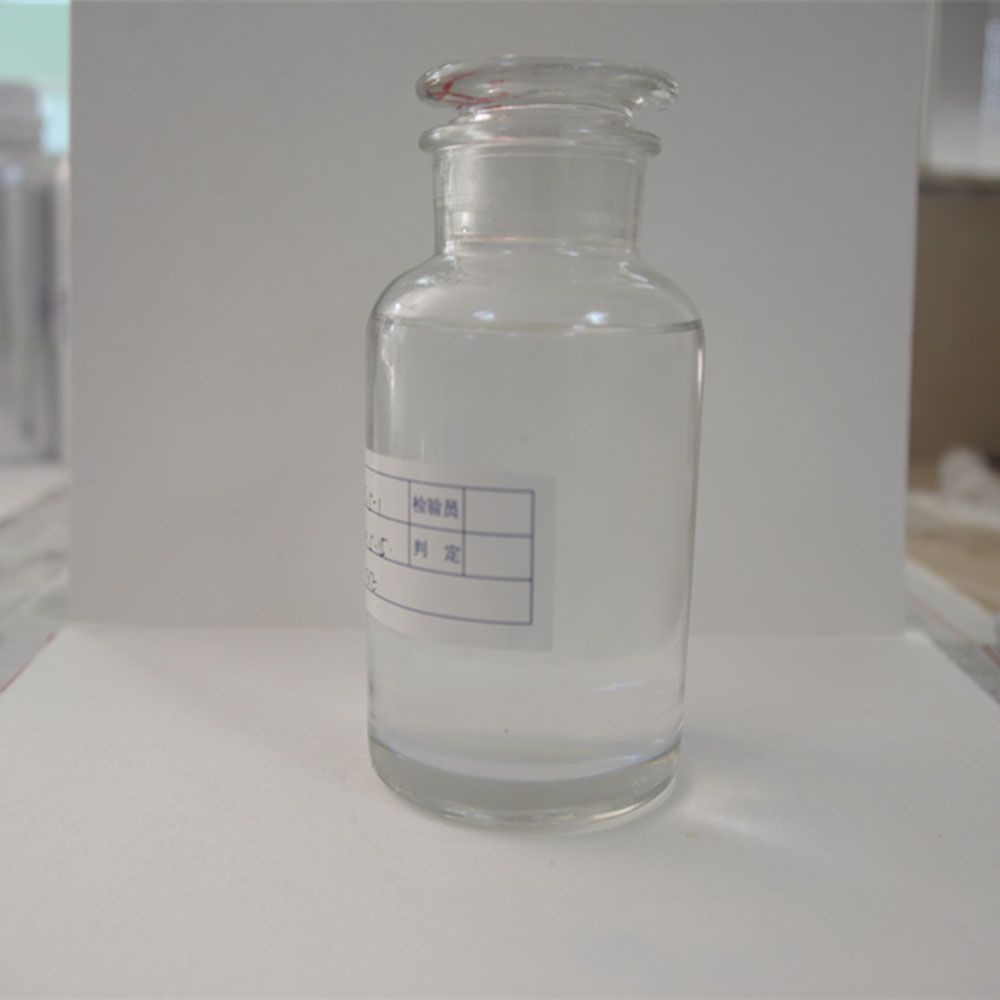

Product name: Phenyl xylene ethane Insulating Liquid (PXE)
CAS Number: 6196-95-8
Chemical Formula: C16H18
JINELEC 200, diarylethane insulating liquid, the main component is phenylxyleneethane (including isomers). It has good physical and chemical properties and electrical properties, and shows excellent compatibility with polypropylene film. It is an excellent impregnating agent for medium and low voltage capacitors, and is biodegradable and low toxic.
Product Data
Reference Standard: GB 21221-2007 |
Item | Unit | Index Value |
Appearance | ---------- | Colorless or pale yellow transparent liquid |
Density (20℃) | g/cm3 | 0.950-0.990 |
Acid Number | mg KOH/g | ≤0.015 |
Flash Point | ℃ | ≥140 |
Pour Point | ℃ | ≤-40 |
Kinetic viscosity (40℃) | mm2/s | ≤7.0 |
Breakdown Voltage (Spherical electrode/50Hz,2.5mm) | KV | ≥55 |
Dielectric Dissipation Factor tan δ (90℃-50Hz) | ---------- | ≤0.001 |
Electric volume resistivity (90℃) | Ω.m | ≥1.0*1012 |
Relative Permittivity εγ (90℃-50Hz) | ---------- | 2.40-2.60 |
Water Content | mg/kg | ≤75 |
Gassing Property | m3/min | （-）≥100 |
Note: The above data are only the typical data of the product. The product is subject to the final analysis.
Storage Conditions:
• Keep container tightly closed in a dry and well-ventilated place.
• Keep away from heat.
• Keep away from food, beverages and animal feed.
• Store in accordance with local regulations.
Control/Human Protection
Control parameters
Explosion limits unknown
Appropriate engineering controls
1) When oil mist is generated, seal the source. Provide adequate general and local ventilation.
2) Set up eyewash and shower facilities near the operation.
Protective equipment
Respiratory: Use organic vapor respirator when necessary.
Hands: For long-term and/or repeated contact, wear impermeable industrial gloves.
Eyes: To prevent eye contact with liquid or oil mist, chemical protective glasses are recommended.
Skin and body: Wear oil-proof long-sleeved work clothes when handling and possibly contacting oil products for a long time.
Waste Disposal
Destruction of products by incineration (according to local and national regulations).
This information is based on our present knowledge and experience. However, it implies no liability or other legal responsibility on our part, including with regard to existing third-party patent rights. In particular, no guarantee of properties in the legal sense is implied. We reserve the right to make any changes according to technological progress or further developments. The customer is not released from the obligation to conduct careful inspection and testing of incoming goods.
